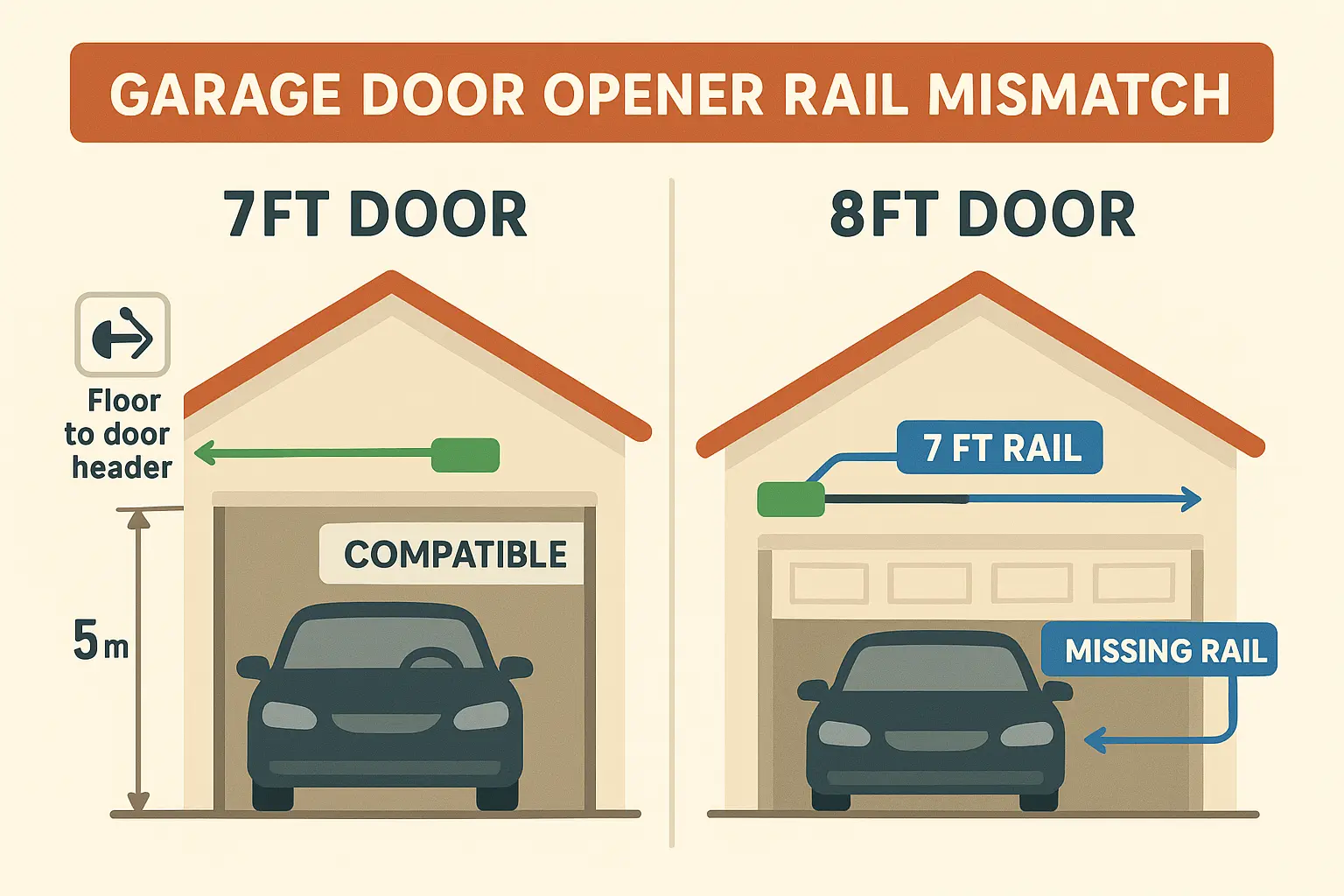

The Complete Guide to Opener Rail Extension Kits for 8-Foot Doors

Navigating retail extension kits can be confusing because official product listings often obscure cross-brand compatibility. Nearly 78% of negative customer reviews for extension kits stem from purchasing the wrong model or realizing too late that an add-on was required.

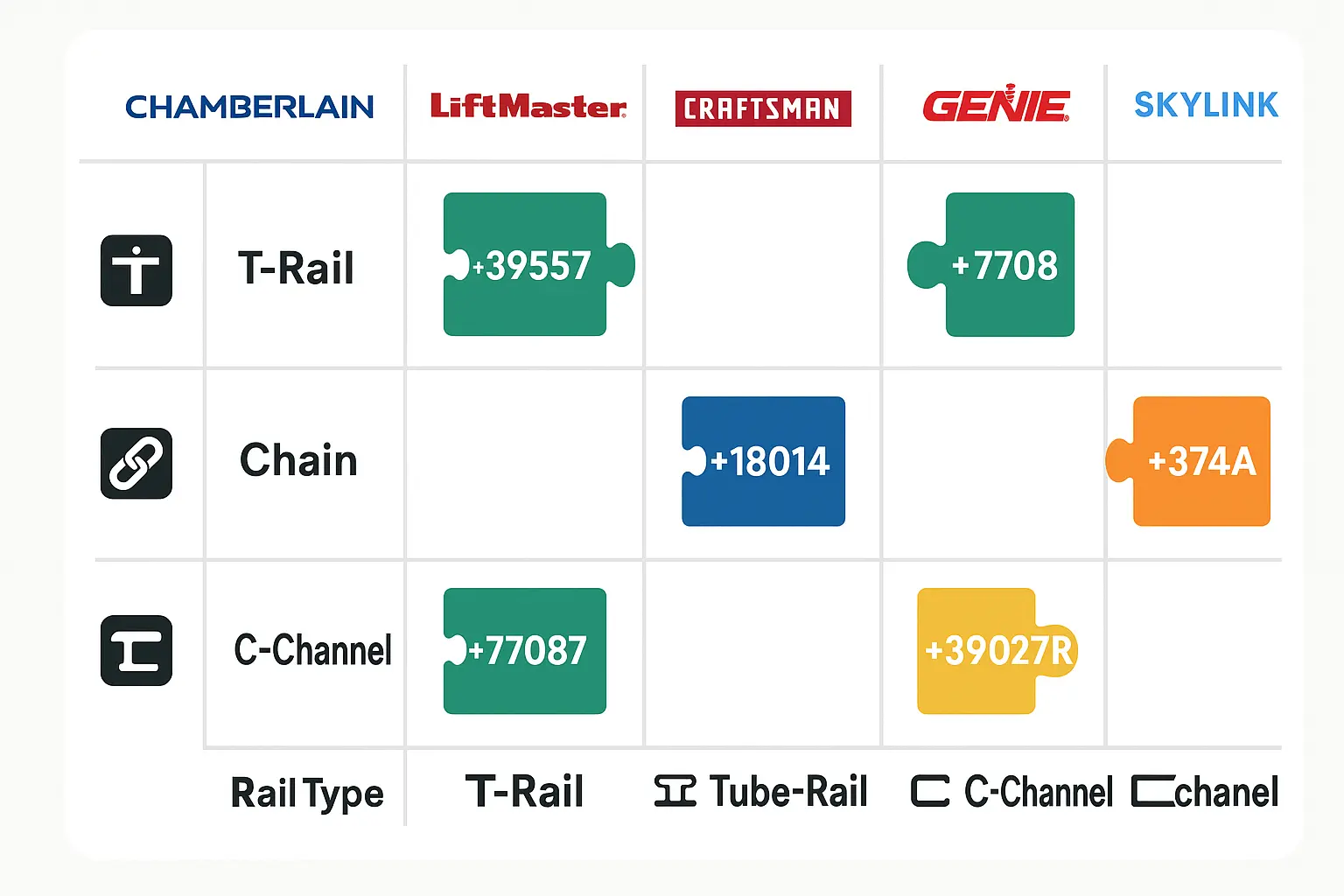

The key to choosing the right kit lies in understanding OEM manufacturing relationships. Chamberlain, LiftMaster, and Sears Craftsman share identical rail architectures and drive mechanisms. If you need to identify unknown garage door opener units in your home, identifying the underlying parent manufacturer will simplify finding the exact extension part number:

• Chamberlain / LiftMaster / Craftsman (Belt Drive): Use kit model 8808CB-P or G8808CB-P. These include a rail segment extension and a full-length replacement belt.
• Chamberlain / LiftMaster / Craftsman (Chain Drive): Use kit model 6608CD or 7708CB. These provide extra rail length and additional chain segments with master link connectors.
• Genie / Overhead Door (Belt & Chain Drive): Genie utilizes 3-piece C-channel or tube rails. Extension kits EKBC (Belt) and EKTC (Chain), as well as part numbers 39026R and 39027R, offer snap-together rail sections paired with drive extenders.

A common DIY workaround attempt is mounting the header bracket lower or angling the J-arm to bridge the gap without an extension kit. This creates severe geometric binding, puts unnecessary stress on the top door panel, and voids manufacturer warranties.

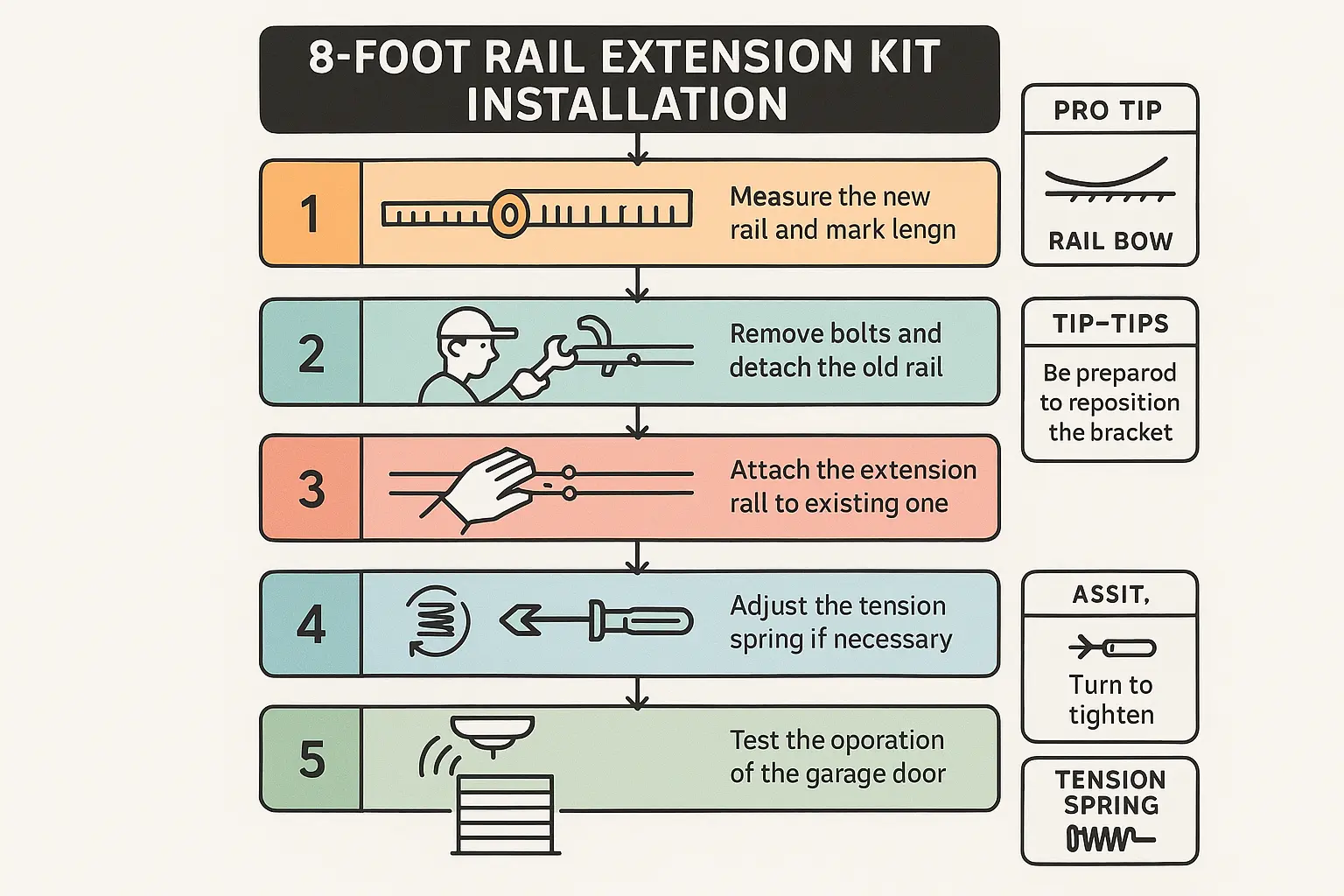

To complete your extension installation successfully:

1. Splice the Rail Uniformly: Insert the extension section directly where the manual specifies—typically between the header segment and the main assembly—to preserve structural rigidity.
2. Calibrate Limit Controls: Because the trolley travels further along an extended rail, reconfigure your garage door limit switch settings immediately. Failure to reprogram open and close limits will cause the carriage to strike the motor housing or force the door into the floor.
3. Perform Safety Reverse Tests: Test force settings by placing a 2×4 board flat under the door to confirm the automatic safety reversal operates correctly with the extended track length.
