Many homeowners hesitate to add a wireless keypad because they expect a complicated setup. The common myth is that adding a keypad requires complex wiring, drywall cutting, or hiring an electrician. In reality, modern keypads function as secure, wireless, battery-powered wall remotes that pair to your opener via radio frequency in about 15 minutes.

Before purchasing hardware, you must confirm that your ceiling-mounted motor is compatible with current keypad transmitter technologies.

The 3-Step Pre-Flight Compatibility Assessment

To verify compatibility, execute this simple three-step diagnostic process:

Locate the Motor Head Cover: Access your hanging garage motor. The programming controls are typically on the rear panel or concealed behind a plastic light cover.
Find the Radio Receiver or Learn Button: Look for a small colored button (frequently round or square) labeled “Learn” or “Smart” near the flexible antenna wire.
Note the Button Color or Manufacture Date: This specific combination tells you exactly which frequency and security protocol your system uses.

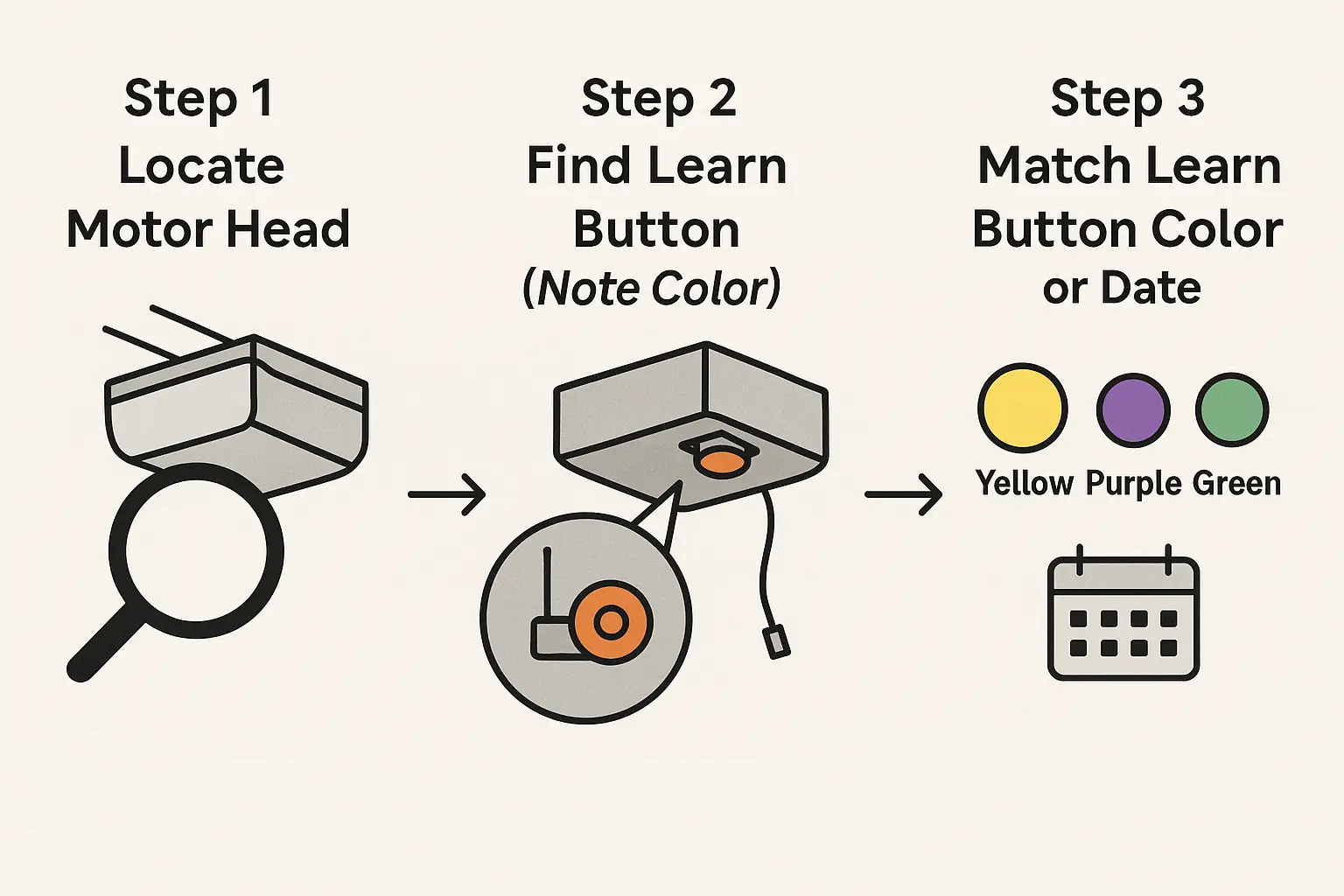

3-Step Pre-Flight Compatibility Assessment This process diagram teaches beginners how to quickly assess if their garage door opener can pair with a keypad by identifying the learn button color or manufacture year in three simple steps.

Decoding the Chamberlain, LiftMaster, and Craftsman Color Matrix

Chamberlain Group systems rely on a color-coded learn button system to indicate their underlying radio-frequency architecture:

Yellow Button (Security+ 2.0 / MyQ): Manufactured from 2011 to Present. These systems use a Tri-Band setup (simultaneously transmitting across 310, 315, and 390 MHz) to bypass local RF interference. Compatible keypads include the 878MAX, 940EV, and KLIK2U.
Purple Button (Security+ 315MHz): Manufactured from 2005 to 2011. This 315 MHz standard was introduced after the US military occupied the 390 MHz band for land-mobile radio. Keypad options include the 877MAX, 940EV, and KLIK2U.
Orange/Red Button (Security+ 390MHz): Manufactured from 1997 to 2005. Operates on 390 MHz. Works with the 977LM, 940EV, and KLIK2U.
Green Button (Billion Code): Manufactured from 1993 to 1997. Operates on 390 MHz. Works with the KLIK2U and 940EV.

Genie & Overhead Door Intellicode Generations

Genie and Overhead Door systems do not use color-coded learn buttons. Instead, compatibility depends on Intellicode generations:

Intellicode I (Series II): Employs 390 MHz rolling-code security.
Intellicode II (Series III): Operates on a dual-frequency system (315/390 MHz) to safeguard against local signal congestion.
Dip Switch Systems (Pre-1993): Uses 9 or 12 manual physical switches. Modern universal keypads like the Genie GUK-BX can replicate these DIP codes via specialized programming sequences.

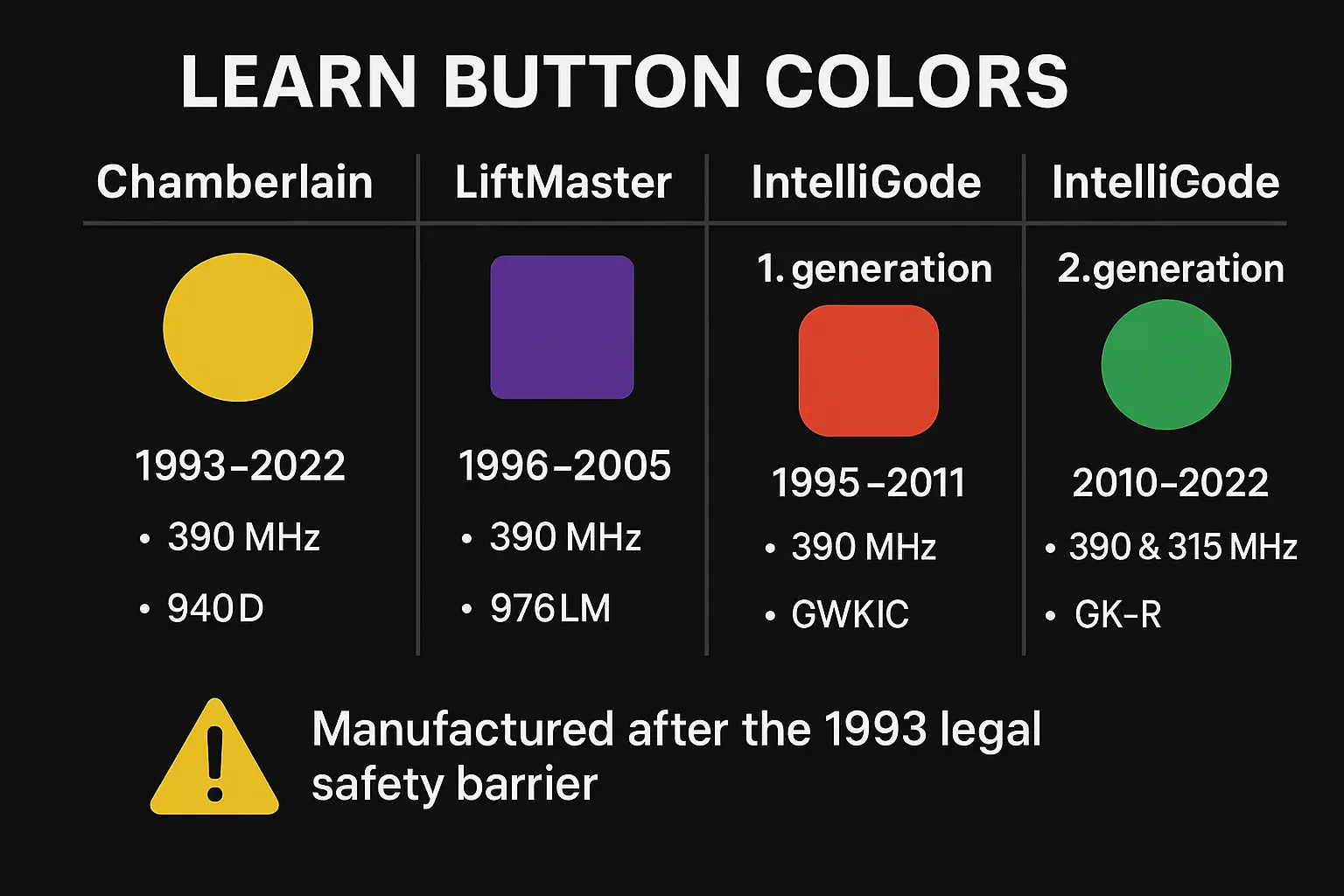

Learn Button & Intellicode Chart This memorable color-coded chart anchors key technical compatibility information. It helps readers instantly recall which keypad models work with their garage door opener based on learn button color or IntelliCode generation.

Why Pre-1993 Openers Face a Legal Hard Stop

If your opener was manufactured prior to January 1, 1993, modern universal keypads cannot pair with it. On this date, federal safety standard UL 325 mandated that all residential garage door openers sold in the United States incorporate secondary safety entrapment protection, such as infrared photo-eye sensors.

Because legacy systems lack this sensor confirmation handshake, modern keypads are legally and technically restricted from remote operation. If your older opener lacks photo-eyes, you will need a full system replacement to utilize wireless keypads.

Power, Mounting, and Environmental Requirements

To ensure reliable long-term performance, your installation must meet specific environmental and electrical standards:

Power Source: Always use a high-quality 9V alkaline battery. However, in regions with freezing winters, we recommend lithium batteries. Alkaline batteries experience dramatic voltage drops in low temperatures, which can cause the keypad to lose its paired programming.
Mounting Location: Install the keypad on the exterior wooden door jamb at least 5 feet (1.5m) above the ground. This height prevents young children from reaching it and keeps the RF signals clear of concrete foundation reinforcement.

For advanced pairing diagnostics or professional hardware upgrades, scheduling a trusted new haven garage door repair technician ensures your entry points remain secure and operational.

Troubleshooting and the Common Traps

If your keypad fails to program despite verified compatibility, check for these two common issues:

The Memory Wipe Trap: During pairing, you must briefly press and release the motor’s Learn button. Holding the Learn button down for more than 6 seconds clears the receiver’s memory bank, erasing all programmed handheld remotes, vehicle transponders, and existing keypads.
LED Bulb RF Interference: Federal Communications Commission (FCC) reports indicate that unshielded LED light bulbs installed inside the garage door opener motor can emit electromagnetic noise across the 300–400 MHz bands. This noise jams the keypad’s signal during programming. Temporarily unscrew your LED bulbs when pairing.

If you run into complex signal issues or require expert local installation, our dedicated 24 hour garage door repair technicians are ready to assist. If you live closer to Fairfield County, our expert team provides comprehensive 24 hour garage door service and localized assistance with specialized garage door repair stamford ct services to optimize your system.

Frequently Asked Questions

Do I need to run wires from the keypad to my garage door opener?

No physical wiring is required. Modern garage door keypads are completely wireless, battery-powered radio transmitters. They communicate directly with the opener’s radio receiver, making installation a quick DIY project requiring only two mounting screws.

Why won't my brand-new universal keypad pair with my older garage door opener?

Under federal law UL 325, openers manufactured before January 1, 1993, lack mandatory safety photo-eyes. Because universal keypads require a safety handshake to operate remotely, they are legally and technically designed to block pairing with these unequipped legacy units.

How do LED light bulbs affect garage door keypad programming?

Many standard household LED bulbs emit radio-frequency interference on the 300–400 MHz spectrum. This noise can block the signal between your keypad and motor receiver during the programming sequence. Temporarily removing the bulbs during pairing solves this problem.
